Proximity Detector Placement in High-Traffic Warehouses

Proximity detection technology stands as a cornerstone of modern warehouse safety protocols, but its effectiveness is directly tied to its implementation. Strategic proximity detector placement in high-traffic warehouses is not just a technical requirement; it's a foundational element for a robust safety culture and an efficient workflow.

Proximity detection systems function by creating an invisible zone around mobile equipment, like forklifts, and alerting operators and pedestrians when that zone is physically breached. These systems use various technologies, such as radio frequency (RF), magnetic fields, or ultrasonic waves, to detect tagged personnel or other equipped vehicles. The goal is to provide timely warnings that prevent collisions in environments where visibility is minimal and activity is constant.

The placement of these detectors—both on vehicles and as stationary units within the facility—determines the system's reliability. Poor placement can lead to blind spots, nuisance alerts, or delayed warnings, that can undermine user confidence and compromise safety. Learn how to adhere to a more methodical approach to sensor installation today.

Vehicle-Mounted Detector Placement

The primary application for proximity detectors is on mobile equipment. Forklifts and pallet jacks are constantly in motion, and their operators have numerous blind spots. The proper placement of detectors on these vehicles is fundamental to their function.

For a standard counterbalanced forklift, detectors should be mounted to provide 360-degree coverage. This typically involves the placement of sensors at all four corners of the vehicle. A front-mounted sensor detects pedestrians or obstacles in the forward path, while rear-mounted sensors are vital due to the operator's limited rear visibility, especially when a load obstructs the view.

Side-mounted sensors are also valuable. They cover the significant blind spots along the sides of the forklift, which are particularly vulnerable during turns. The height of the sensor placement matters as well. Position sensors at a height at which they can detect a standing person, a person who might be kneeling, and other low-profile equipment. A common practice is to mount them at a mid-level on the vehicle's chassis.

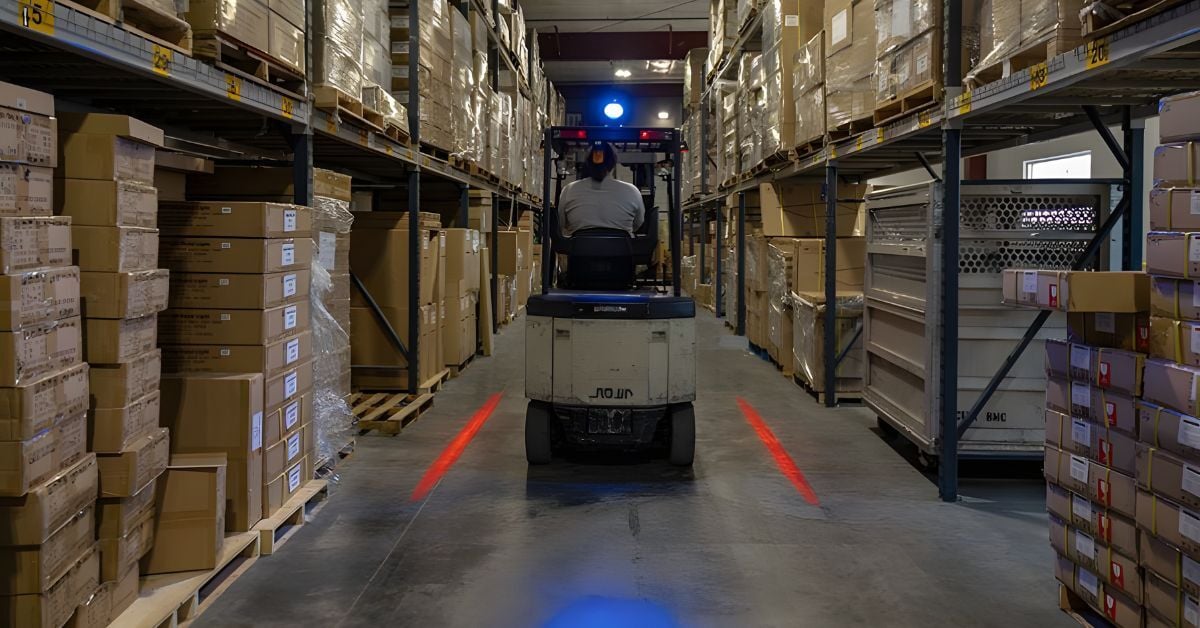

Consider a forklift that operates in narrow aisles. The detection zone must be accurately configured to the width of the aisle to avoid constant false alarms from proximity to racking. Advanced systems allow for dynamic zone adjustments, where the detection field can be automatically narrowed in specific areas. This requires precise initial placement to support such functionality.

Stationary Detector Placement in Critical Zones

Beyond vehicle-mounted units, stationary detectors play a crucial role in safeguarding specific high-risk areas within the warehouse. These zones are locations where the interaction between pedestrians and vehicles is frequent and predictable. Proper stationary detector placement provides an added layer of awareness.

One of the most common applications is at intersections and blind corners. A sensor mounted on a wall or rack upright before a corner can detect an approaching forklift and trigger a visual or audible alarm for pedestrians in the intersecting aisle. This preemptive warning gives pedestrians the time to react before the vehicle is even visible.

Loading docks are another area of heightened risk. You can install stationary sensors around dock doors to alert workers inside a trailer when a forklift is about to enter. This prevents collisions in the tight confines of a semi-trailer. The placement should be high enough to avoid damage from vehicles but low enough for consistent detection.

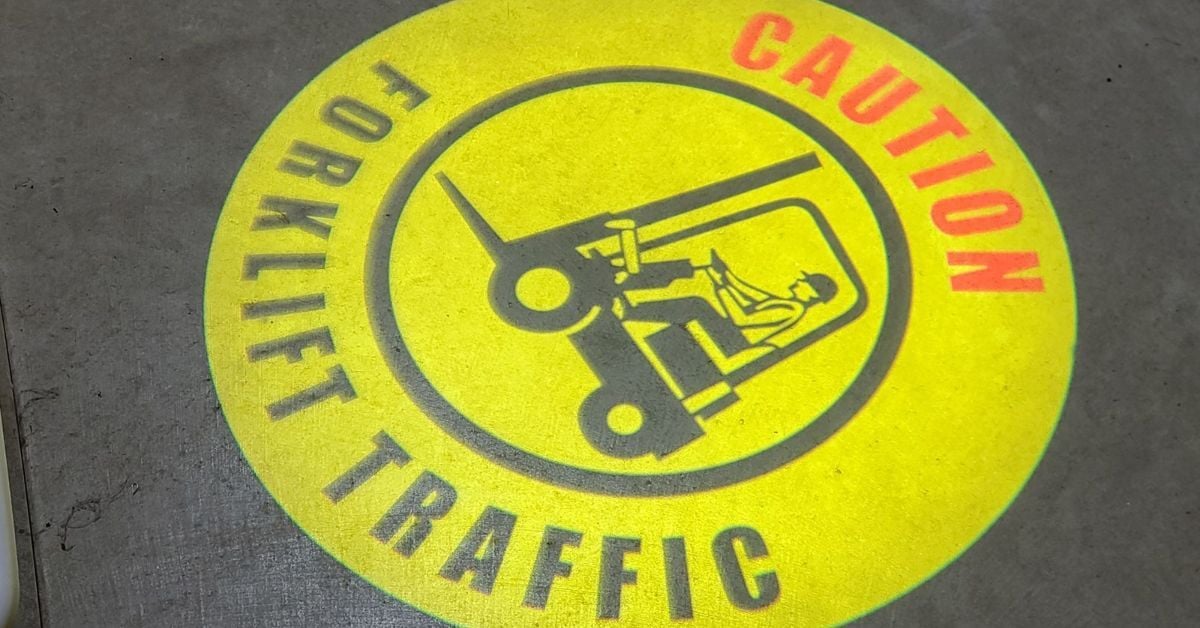

Pedestrian crossings and designated walkways that intersect vehicle paths are also ideal locations for stationary sensors. A sensor can activate flashing lights on the floor or an overhead sign when a vehicle approaches the crosswalk. This provides an unambiguous signal for pedestrians to stop and look before they proceed.

Analyzing Warehouse Layout and Traffic Flow

Effective detector placement cannot happen in a vacuum. It requires a thorough analysis of the warehouse's unique layout and traffic patterns. A facility assessment should be the first step in any proximity detection system installation.

Map out the primary routes for both vehicles and pedestrians. Identify areas with the highest congestion, where paths cross frequently, or where visibility is restricted by racking, stacked pallets, or building structures. These are your priority zones for coverage. A "heat map" of incidents or near-misses can offer powerful data to guide placement decisions.

For example, a warehouse with a four-way intersection near the main staging area is a clear high-risk zone. A combination of vehicle-mounted detectors and stationary sensors at this intersection would provide comprehensive coverage. The stationary sensors would warn of approaching traffic from any direction, while the vehicle-based systems would provide immediate, localized alerts.

The nature of the work employees perform in different areas also influences placement strategy. In a bulk storage area with wide-open spaces, a larger detection zone on forklifts is appropriate. In a dense order-picking module with narrow aisles, the detection zones must be much tighter and more precisely defined to be effective.

Overcoming Environmental and Structural Challenges

Before you browse the many warehouse safety products available, including forklift sensors, consider the environmental challenges in your way. Warehouses present numerous challenges which can interfere with proximity detection technology. Metal racking, concrete pillars, and high levels of electromagnetic interference from other equipment can affect system performance. A thoughtful placement strategy anticipates and mitigates these issues.

A final consideration is the physical protection of the detectors themselves. Sensors mounted on forklifts or on racking in high-traffic areas are susceptible to damage from impacts. They should be placed within the physical profile of the vehicle or protected with robust guards. A damaged sensor is a point of failure for the entire safety system.

A Systematic Approach to Warehouse Safety

The ultimate objective of a proximity detection system is to create a safer, more predictable environment for everyone. This is achieved through a technical solution guided by a deep understanding of human behavior and operational realities. Strategic placement transforms a collection of sensors into an intelligent safety network.

By carefully analyzing traffic flows, identifying high-risk zones, and accounting for the physical characteristics of the warehouse, you can optimize your system for maximum effectiveness. This methodical approach is the best way to execute your plan. Follow this comprehensive overview of proximity detector placement in high-traffic warehouses to help your organization enhance site safety, protect your workforce, and improve overall operational efficiency.
